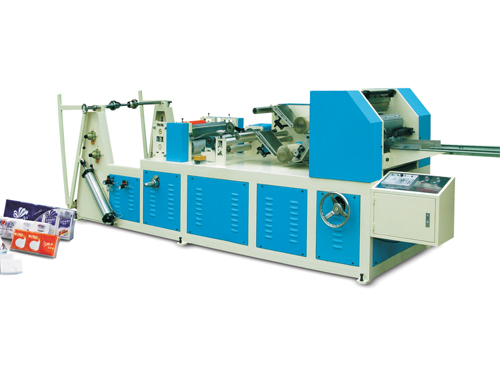

Two Lane Pocket Tissue Machine
PARAMETERS
| Model | BS-P-2L |
| Finished Products Size(mm) | 210(L)x210(W)±2mm（Other sizes are available） |
| Folded Size(mm) | (75/105)x53 |
| Raw Material Jumbo Roll Size(mm) | Φ1100x420 |
| Capacity | 800-1000sheets/min |
| Power | 3kw |
| Vacuum system | 5.5KW |
| Bottom Embossing roll | Rubber roll, paper roll ，steel roll |
| Calendering | Steel to rubber |
| Monitor system | Automatic stop when paper break |
| Pneumatic system | 3HP air compressor, mini pressure 5kg/cm2 Pa(provided by customer) |
| Dimension(L×W×H) | 3350x1300x1250 |
| Weight | 1800kg |
Description
MAIN FEATURES
BS-P-2L Embossed pocket tissue machine is for the production of mini-sized paper handker-chief by process
of vacuum suction, embossing, cutting and then automatic folding into the finished products.The machine
is featured of stable running, high speed and nice sheet folding. The length of hanky sheets can be randomly
adjustable in the range of 68mm -110mm. The embossing patterns can be subject to the samples submitted
by customers.
