Features:
High precision density structure, maintenance and operation is simple.
Introductions:

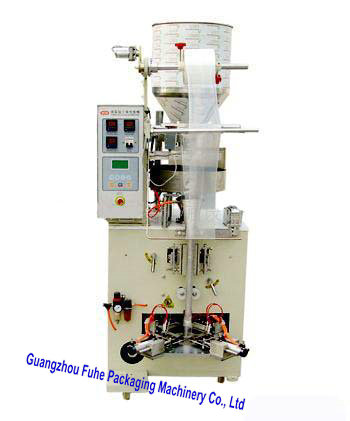

The machine introduce advanced foreign technology, draw the essence of domestic and imported advanced photoelectric sensor control system. Two bags can be accurate slitting bags. Automatic completion of bag-making, measuring, filling, sealing, cutting, heat-printing codes, can divide and can league etc. Function.
Use:
it is suitable for food, chemical industry, pharmacy, condiments such as solid packing (such as: nuts, sugar pill, chocolate beans, peanuts, take a left pills, tablets, health product packaging, etc), the automatic completion of bag-making, sealing, counting, more even, the bag hemisected one-off cut.
TECHNICAL PARAMETER
Packing speed | 30~50(bag/min) |
Packing size | L:50~100mm W:40~70mm |
Packing film thickness | 0.03~0.07mm |
Max film thickness | 180mm |
Paper maximum overall diameter | ≤φ350mm |
Measuring range | 15~120ml |
Power | 1.2kw |
Overall dimension | 900×720×1600 |
Weight | 300kg |
Voltage | 220v |
