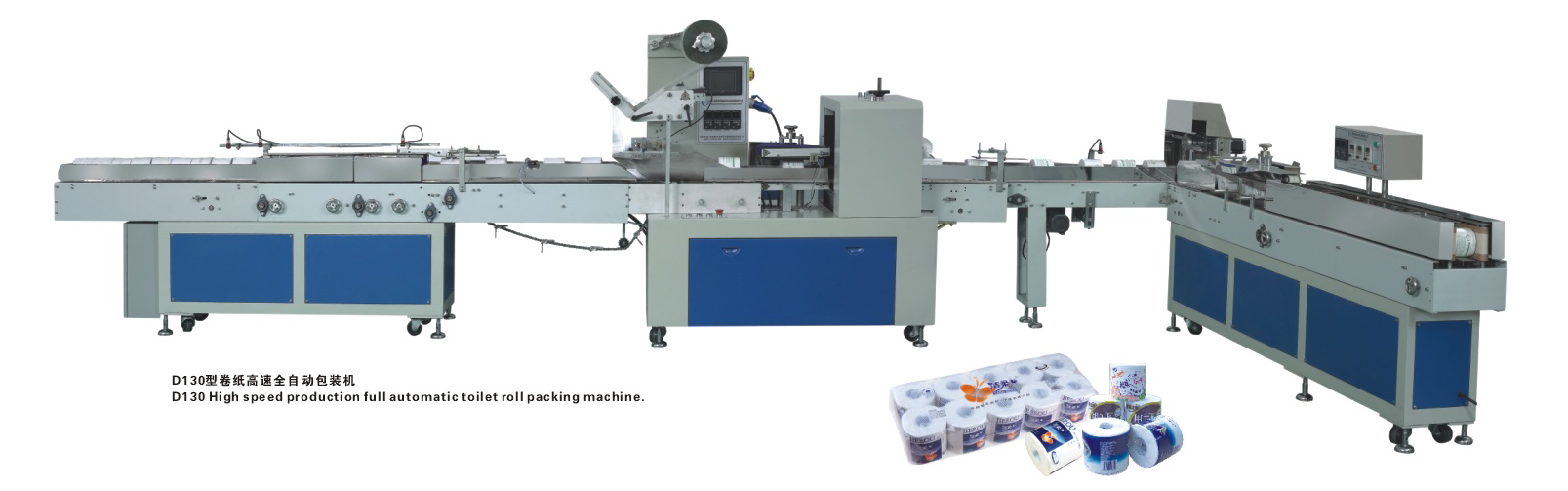

Toilet Roll Packing Machine
PARAMETERS
|
Model |
Max Film width |
Speed |
Length of pack |
Pack width |
Pack Height |
Voltage |
Power |
Weight |
Dimensions (L*W*H) |
|
(mm) |
(Bag/min) |
(mm) |
(mm) |
(mm) |
(V) |
(KW) |
(Kg) |
(mm) |
|
|
BS-450/99 |
450 |
30-220 |
70-450 |
10-150 |
5-45 |
220 |
3.5 |
1000 |
5700*1050*1700 |
|
BS-450/120 |
450 |
30-220 |
70-450 |
10-150 |
5-65 |
220 |
3.6 |
1000 |
5700*1050*1700 |
|
BS-450/150 |
450 |
30-220 |
90-450 |
10-150 |
5-85 |
220 |
3.6 |
1000 |
5700*1050*1700 |
|
BS-450/180 |
450 |
30-220 |
100-450 |
10-150 |
5-120 |
220 |
3.6 |
1000 |
5700*1050*1700 |
|
BS-590/120 |
590 |
30-120 |
80-450 |
10-200 |
5-65 |
220 |
4 |
1200 |
5700*1250*1800 |
|
BS-590/150 |
590 |
30-120 |
80-450 |
10-200 |
5-85 |
220 |
4 |
1200 |
5700*1250*1800 |
|
BS-590/180 |
590 |
30-120 |
100-450 |
10-200 |
5-120 |
220 |
4 |
1200 |
5700*1250*1800 |
Description
MAIN FEATURES
1 Applications
Package of soft strip or bulk materials such as towel, tissue, noodle, squid egg roll, sausage, ice cream, biscuits, fresh fruits and jelly candy.etc.
2 Wrapping material
Suitable for heat sealing package composite film like paper /PE, OPP/PE, OPP/PP, PT/PE, AL/PE, OPP/PE etc.
Or shrink film as PVC, OPP, POF etc.
3 Mechanical Features
Design of mechanical structure is simple and reasonable.
Adopting double-drive, automatic open-close vertical sealer system makes the vertical sealing stable and smooth
High-speed horizontal sealer system makes the sealing operate at high speed the sealed stripes are clear and beautiful
Function of automatic stop at the fixed position is provided
Safety clutch for special products to protect the packed goods is available
