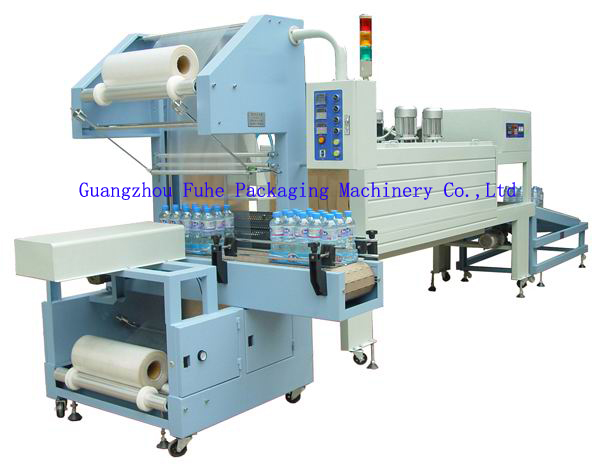

TF6540+BS5540L Automatic mantle sealing and cutting packing machine
TF6540+BS5540L Automatic mantle sealing and cutting packing machine

TF6540+BS5540L Automatic mantle sealing and cutting packing machine

PRODUCT DETAILS

Electric fully automatic machine from the process control and issued a warning and letters is no obstacle warning function. It is currently closed Reshousu packaging machine sets already more advanced packaging equipment. The aircraft mainly food, beverages, native products, ceramics and other items integrated sets of protective is fully automatic packaging. It apply to PE film packaging materials, packaging cartons compared to traditional, much of the packaging cost savings. Reshousuo with PE film packaging machine used for the packaging to complete integrity, a good contraction effects. And automatic production lines with the use of better reflect its superiority.

Description

TF6540 STEAL AND CUTTING TECHNICAL SPECIFICATIONS

Voltage AC 220/5060 V 110/5060 Hz
Power 1.5 KW
Max. Packing Dimension(L×W×H) 530×330×380 mm
packing Speed 12Pcs/min
Max. Sealing Length 650 mm
Working Air Pressure 68 Kgf/cm2
Dimension (L×W×H) 1550×1400×1920mm
Net Weight 400 Kg

BS5540L TECHNICAL SPECIFICATIONS

Model BS5540L
Voltage 380V/50HZ(3PH)
Power 27Kw
Conveyor Loading 80kg
Conveying Speed 0~10m/min
Tunnel Size 950×550×400mm
Overall Dimension 3100×850×1500mm
Net Weight 400kg
