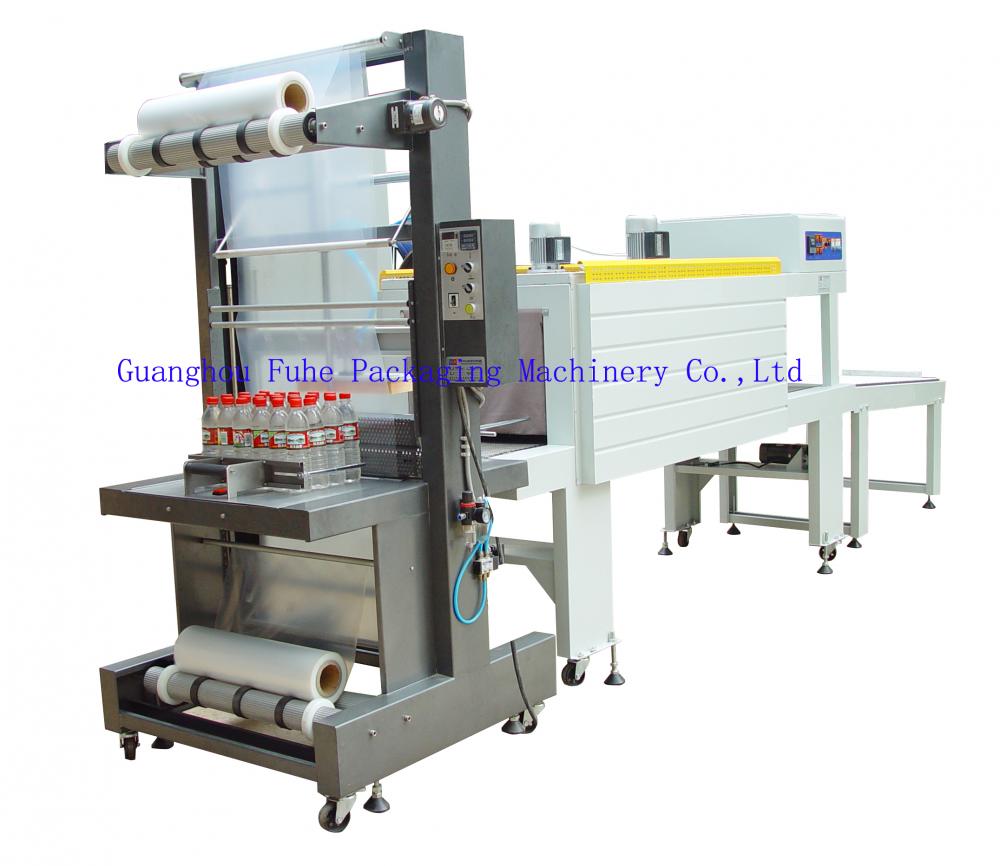

TF6540A+BS5540M Semi-automatic Mantle Sealing And Cutting Packing Machine
PRODUCT DETAILS
The machine adopts filling materials with hands. It can be used not only single material but also many pieces materials for mantling shrink wrapping.
It is suitable for printing. pharmacy. ceramics. drinking. beer etc industries for large scale. It suits PVC. POF. PP. PE etc heat shrink film.
Description
TF6540SA TECHNICAL SPECIFICATIONS
| Voltage | AC 220/50~60 V/110/50~60 Hz |
| Power | 1.5KW |
| Max. Packing Dimension | 550×400×380 mm(L×W×H) |
| Max. Sealing Length | 650 mm |
| Working Air Pressure | 5～7 Kgf/cm2 |
| Dimension (L×W×H) | 925×1040×1920 mm |
| Net Weight | 300 Kg |
BS5540L TECHNICAL SPECIFICATIONS
| Model | BS5540L |
| Voltage | 380V/50HZ(3PH) |
| Power | 27Kw |
| Conveyor Loading | 80kg |
| Conveying Speed | 0~10m/min |
| Tunnel Size | 950×550×400mm |
| Overall Dimension | 3100×850×1500mm |
| Net Weight | 400kg |
