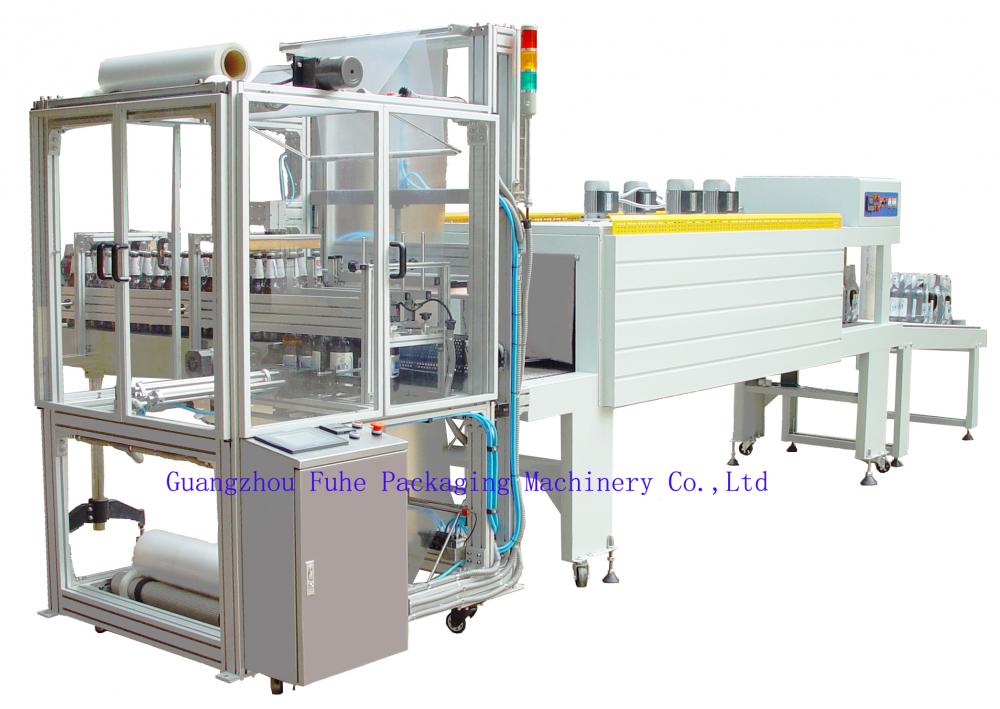

TF6540A+BS5540L Mantle Sealing And Cutting Packing Machine
TF6540A+BS5540L Mantle Sealing And Cutting Packing Machine

TF6540A+BS5540L Mantle Sealing And Cutting Packing Machine

PRODUCT DETAILS

The plane introduction PLC and touching screen fully automatic computer control, and has no obstacle warning function. It is currently closed Reshousu packaging machine sets already more advanced packaging equipment. The aircraft mainly canned drinks, bottle-shaped sets out a whole block letters cut packaging, and with constant temperature(PE) by supporting the sue of stoves, packaging supplies reach integrity, a good contraction effects. And automatic production lines with more showing its superiorty. The scope of application of machine,  high economic efficiency, operational convenience. It is apply to PE film packaging materials, packaging cartons compared to traditional, much of the packaging cost savings.


Description

F6540A TECHNICAL SPECIFICATIONS

Voltage AC 220/5060 V 110/5060 Hz
Power 1.5 KW
Max. Packing Quantity 4×6 PCS
packing Speed 8 Pcs/min
Max. Sealing Length 650 mm
Working Air Pressure 68 Kgf/cm2
Dimension (L×W×H) 2450×1750×1950 mm
Net Weight 350Kg

BS5540L TECHNICAL SPECIFICATIONS

Model BS5540L
Voltage 380V/50HZ(3PH)
Power 27Kw
Conveyor Loading 80kg
Conveying Speed 0~10m/min
Tunnel Size 950×550×400mm
Overall Dimension 3100×850×1500mm
Net Weight 400kg
