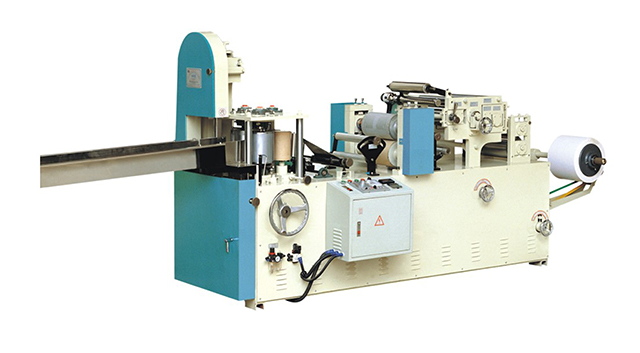

Single Color Printing Napkin Machine

parameters

Model	BS-N-P1
Parent roll width	Subject to the size ordered
Max. parent roll diameter	φ1100mm
Core inner dia.of parent roll	3” (76.2mm)
Parent roll web material	1-3 plies tissue paper with 18-25GSM each ply
Finished product size	Subject to the size ordered
Embossing unit	Steel to rubber/felted/paper roller (steel to steel embosser or Engraved embosser need to be ordered)
Counting	Electronic / Pneumatic ( to be ordered)
Printing	Flexo
Printing ink	Water-based ink
Printing plate	Aniline
Machine speed	160-180m/Min.
Folding unit	1/4 fold ( pls specify if other fold type needed)

Description

MAIN FEATURES

BS-N-P1 Napkin folder with one color printer use to print all kinds of beautiful and fine pattern on the tissue, then embossing, folding and cutting the tissue into square napkins.

Main features:

1. Adopts professional printing anilox roller.

2. After the paper web is unwinding, it will be sent to the calender unit, printing unit then embossing unit. There is manual adjustment for the paper tension between the unwinding and calender unit and embossing unit.

3. Machine will stop automatically at the paper web wind up the folding roller.

4. With Steel to rubber Calender unit, embossing can be steel to felted roller, paper roller or rubber roller( choose one)

5. The gap between two folding&cutting rollers can be adjustable according to different plies and GSM.

6. *Steel to Steel calender roller can be added on machine.

7. *Engraved embosser can be added on machine.

8. *Automatic constant temperature heating unit on embosser unit can be ordered.
