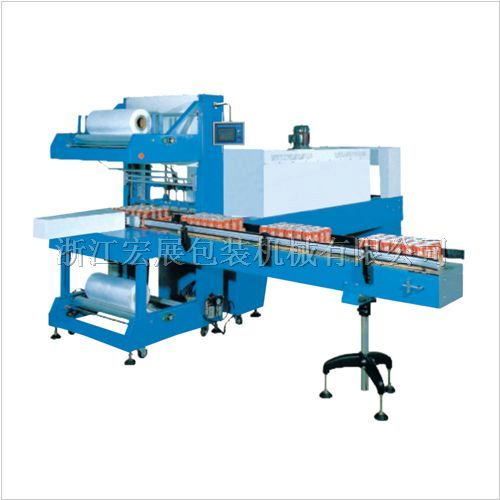

ST6030AH WITH TRAY
ST6030AH WITH TRAY

ST6030AH WITH TRAY

PRODUCT DETAILS

 ST6030AF supplies counting,full-column automatic shrink without tray,suitable for various of bottles and bottled drinks,and provides single or double row of the bottle without bottom-tray.It is full-column shring ST-6030AH,It is pillng,wrapping,sealing,shrinking,cooling automatically.The whole producing process adopts the Germany advanced technology based on European standard.The electrical units are chosen from international famous companies.Such as :OMRON,SICK,NAIS,MITSUBISHI and so on.The packed goods is neatness,compact,suitable for long transportation.

Scope of Appication:
Suitable for such products as pop-top cans,glsss bottles,beer and mineral water It also can be packed wood,round steel,china steel and so on.Applicable to PVC and PE shrink film.

Description

TECHNICAL PARAMETER

Max packing dimension(mm) L500×W400×H450 W650×H400×L Unlimited
Minium packing size 280×100×100mm
Packing Speed 6-10pcs/minute 15m/min
Voltage 220V/50Hz 380V/50Hz
Rated Power 2KW 24KW
Sealing time/Shrink time/Temperature 0.5-1.5S/0-0.6S/0 -250 ℃
Width/Thickness of the Film MA×600mm/0.04 -0.12mm
Dimension L2500×W1430×H2100mm L3200×W950×H1580mm
Gross weight 600kg 400kg
Air pressure of working 4-8Mpa
Shrink film PE POF PVC PE POF PVC
