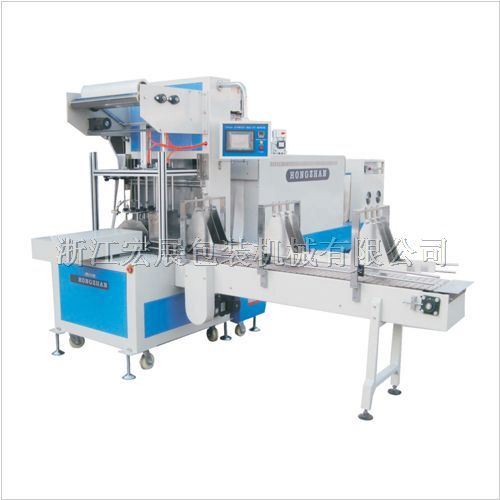

ST6030AF WITHOUT TRAY
ST6030AF WITHOUT TRAY

ST6030AF WITHOUT TRAY

PRODUCT DETAILS

Used to shrink large quantity products such sa pop-top cans,beer and mineral water etc,and used in wood,steel,ceramics,electric appliance and computer industries.Specially designed for shrinking some big and heavy products packed with PE flim.The conveying belt can be made of rollers,or Teflon mesh belt,or S/S mesh belt according to different requirement.Can finish the shrinking in a short time even for a big product,and it is smooth and compact after the shrink,convenient for piling,and ensures the product quality and needs for long distance transportation,uses films such as PE,PVC and POF etc.top bottom side tunnel fixed the stainless steel heater to heater to heat tunnel quickly and prolong the usage life .Up and down large power fan system and super cooling system to ensure the excellent effect of shrinking.

Description

TECHNICAL PARAMETER

Model ST6030AF SEALING MACHINE SM6540 Shrinking tunnel
Horizontal Height and length of infeed Conveyor 850±50mm/2000mm
Max packing dimension(mm) L500×W300×H300 W650×H400×L Unlimited
Minium packing size 280×100×100mm
Packing Speed 8-12pcs/minute 15m /min
Voltage 220V/50Hz 380V/50Hz
Rated Power 2KW 24KW
Sealing time/Shrink time/Temperature 0.5-1.5S/0-0.6S/0 -250 ℃
Width/Thickness of the Film MA×600mm /0.04 -0.12mm
Dimension L2750×W1530×H1970mm L3200×W950×H1580mm
Gross weight 600kg 400kg
Air pressure of working 4-8Mpa
Shrink film PE POF PVC PE POF PVC
