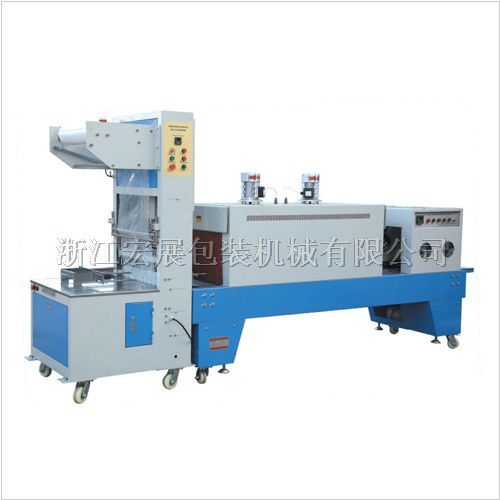

ST6030 SEMI-AUTO TYPE
ST6030 SEMI-AUTO TYPE

ST6030 SEMI-AUTO TYPE

PRODUCT DETAILS

Used to shrink large quantity products such sa pop-top cans,beer and mineral water etc,and used in wood,steel,ceramics,electric appliance and computer industries.Specially designed for shrinking some big and heavy products packed with PE flim.The conveying belt can be made of rollers,or Teflon mesh belt,or S/S mesh belt according to different requirement.Can finish the shrinking in a short time even for a big product,and it is smooth and compact after the shrink,convenient for piling,and ensures the product quality and needs for long distance transportation,uses films such as PE,PVC and POF etc.top bottom side tunnel fixed the stainless steel heater to heater to heat tunnel quickly and prolong the usage life .Up and down large power fan system and super cooling system to ensure the excellent effect of shrinking.

Description

TECHNICAL PARAMETER

Model ST6030 SM6040 Shrinking tunnel
Max packing dimension(mm) L500×W300×H350 W600×H400×L Unlimited
Minium packing size 280×100×100mm
Packing Speed 6-10pcs/minute 15m/min
Voltage 220V/50Hz 380V/50Hz
Rated Power 1.8KW 20KW
Sealing time/Shrink time/Temperature 0.5-1.5S/0-0.6S/0 -250 ℃
Width/Thickness of the Film MA×600mm/0.04 -0.12mm
Dimension L1030×W850×H1970mm L3200×W850×H1580mm
Gross weight 350kg 380KG
Air pressure of working 4-8Mpa
Shrink film PE POF PVC PE POF PVC
