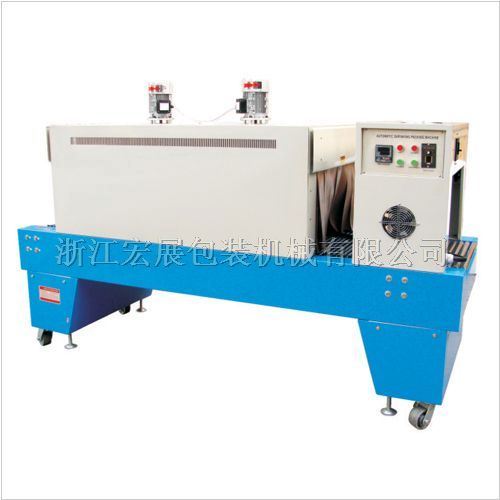

SM6040 SM6540 PE FILM SHRINK PACKAGING MACHINE
SM6040 SM6540 PE FILM SHRINK PACKAGING MACHINE

SM6040 SM6540 PE FILM SHRINK PACKAGING MACHINE

PRODUCT DETAILS

 Used to shrink large quantity products such sa pop-top cans,beer and mineral water etc,and used in wood,steel,ceramics,electric appliance and computer industries.Specially designed for shrinking some big and heavy products packed with PE film.The conveying belt can be made of rollers,or Teflon mesh belt,or S/S mesh belt according to different requirement.Can finish the shrinking in a short time even for a big product,and it is smooth and compact after the shrink,convenient for piling,and ensures the product quality and needs for long distance transportation,uses films such as PE,PVC and POF etc.top bottom side tunnel fixed the stainless steel heater to heater to heat tunnel quickly and prolong the usage life .Up and down large power fan system and super cooling system to ensure the excellent effect of shrinking.


Description

TECHNICAL PARAMETER

Model SM6040 SM6540
Voltage 380v 380v
power 20kw 24kw
speed 15m/min 15m/min
tunnel size 1500×600×4 00mm 1800×650×400mm
machine size 2800×850×1580mm 3200×950×1580mm
machine weight 380kg 400kg
Conveyor loading 35kg 35kg
Temperature 0-250℃ 0-250℃
