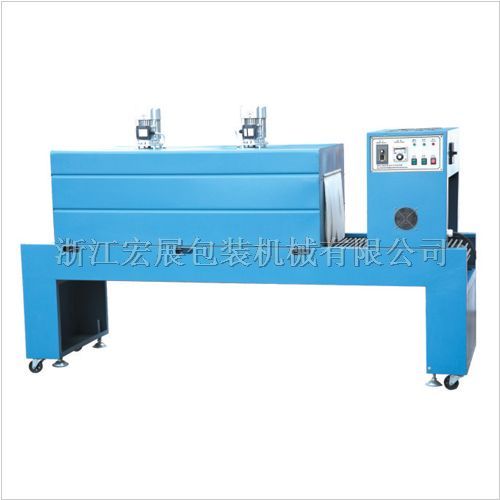

SM4530 SM4535 PE FILM SHRINK PACKAGING MACHINE
SM4530 SM4535 PE FILM SHRINK PACKAGING MACHINE

SM4530 SM4535 PE FILM SHRINK PACKAGING MACHINE

PRODUCT DETAILS

Used to shrink large quantity products such sa pop-top cans,beer and mineral water etc,and used in wood,steel,ceramics,electric appliance and computer industries.Specially designed for shrinking some big and heavy products packed with PE flim.The conveying belt can be made of rollers,or Teflon mesh belt,or S/S mesh belt according to different requirement.Can finish the shrinking in a short time even for a big product,and it is smooth and compact after the shrink,convenient for piling,and ensures the product quality and needs for long distance transportation,uses films such as PE,PVC and POF etc.top bottom side tunnel fixed the stainless steel heater to heater to heat tunnel quickly and prolong the usage life .Up and down large power fan system and super cooling system to ensure the excellent effect of shrinking.


Description

TECHNICAL PARAMETER

Model SM4530 SM4535
Voltage 380v 380v
power 18kw 20kw
speed 12m /min 12m /min
tunnel size 1500×450×300mm 1500×450×350mm
machine size 2460×670×1500mm 2460×670×1550mm
machine weight 200kg 210kg
Conveyor loading 20kg 20kg
Temperature 0-250℃ 0-250℃
