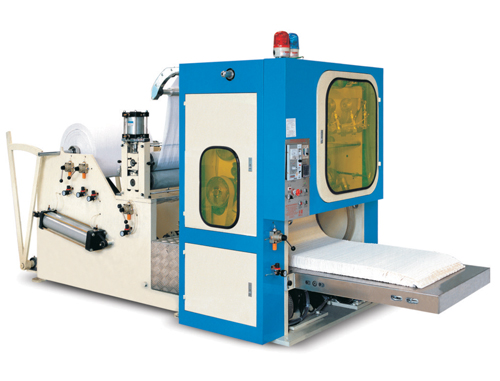

N Fold Hand Towel Tissue Machine

PARAMETERS

ITEM	BS-N-2L	BS-N-3L	BS-N-4L
Finished products size	230（L）×225(W)×2mm（other size to be specified）
Jumbo roll diameter	≥Φ1000mm
Jumbo roll core diameter	Φ76mm(other size to be specified)
Machine speed	0~180m/min
Programmable controller	MITSUBISHI PLC
Folding type	Vacuum suction
Lubricating system	Automatic lubricating at the main sections in time
Transmission system	Timing belt,chain
Counter system	Electronic counting、ink marked
Embossing unit	Steel to steel，press pneumatically
Slitting system	Pneumatic knives
Vacuum power	11KW	18.5KW	22KW
Pneumatic system	3HP air compressor,mini pressure:5kg/cm2（customer provide）
Power	3KW	4KW	5.5KW
Dimension	Depend on configuration
Weight	Depend on configuration

Description

MAIN FEATURES

1.Capacity: up to 180m/min

2.Steel-to-Steel embossed, pneumatically pressed

3. Adopt the vacuum suction technology, it is newly patent product

4.Pneumatically cut-off and separate paper, it is easy for threading paper

5. Equipped with the timing belt, the transmitting speed is correct, and less noise

6.Add the lubricate oil on key part regularly, for keeping the durability of parts

7.The raw paper size is available, 33-45g/m2(single layer)

8.Equipped with PLC system according to the customer's requirement.(Option)
