Kitchen Towel Machine
MACHINE PARAMETER
Machine name

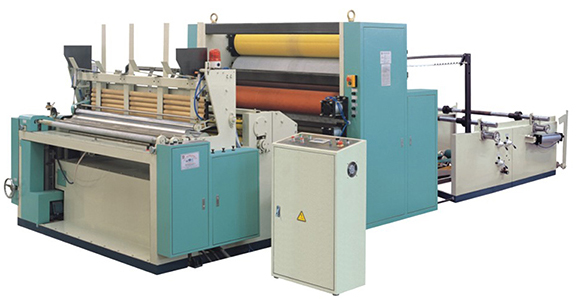

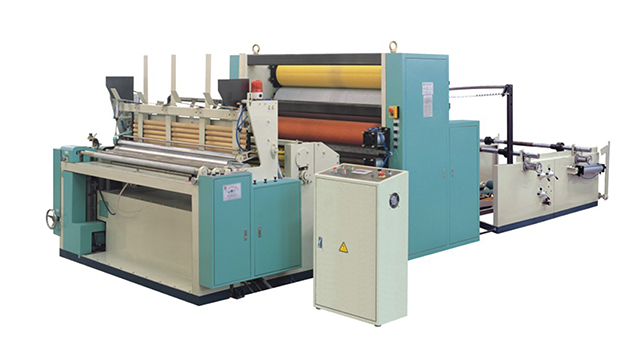

Fully Automatic Rewinder for Deco Toilet
Roll/Kitchen Towel
Model
1092/1575/1760/2500/2900
Max width
of raw paper
1350/1750/2000/2400/2800 mm, other sizes
to be specified
Max outer diameter
of raw paper
1100mm, other sizes to be specified
Inner diameter
of raw paper core
3",76 mm, other sizes to be specified
Outer diameter of
finished product
90-135 mm, other sizes to be specified
Product diameter
control
electric/pneumatic
Speed
0~200m/min
Operation speed
180m/min
Power
variable frequency speed regulating
Parameter setting
HMI(can be equiped with touch screen
operation panel)
Procedure control
PLC
Brake
electric&pneumatic control
Pneumatic system
3HP air compressor, which the min pressure
is 5kg/cm2pa(supplied by user)
Perforating blade
4 pcs spiral blades
Perforating Size
108mm(+-2mm)
Dimension and weight
depends on model and configuration
Options
Options
*Adjustable perforating
Size
4 blades: 90-140mm
2 blades: 200-350mm
1 blade: 200-500mm (+-3mm)
, to be specified
*Backstand
1~3 ply (plies), to be specified
*Embossing
steel to rubber, pneumatic
*Lamination
Gluing & embossing
point to point/nested,deco lamination(to be
specified)
*Edge-embossing
independent pneumatic, steel to steel, to be
specified
Machine name
Fully Automatic Rewinder for Deco Toilet
Roll/Kitchen Towel
Model
1092/1575/1760/2500/2900
Max width
of raw paper
1350/1750/2000/2400/2800 mm, other sizes
to be specified
Max outer diameter
of raw paper
1100mm, other sizes to be specified
Inner diameter
of raw paper core
3",76 mm, other sizes to be specified
Outer diameter of
finished product
90-135 mm, other sizes to be specified
Product diameter
control
electric/pneumatic
Speed
0~200m/min
Operation speed
180m/min
Power
variable frequency speed regulating
Parameter setting
HMI(can be equiped with touch screen
operation panel)
Procedure control
PLC
Brake
electric&pneumatic control
Pneumatic system
3HP air compressor, which the min pressure
is 5kg/cm2pa(supplied by user)
Perforating blade
4 pcs spiral blades
Perforating Size
108mm(+-2mm)
Dimension and weight
depends on model and configuration
Options
Options
*Adjustable perforating
Size
4 blades: 90-140mm
2 blades: 200-350mm
1 blade: 200-500mm (+-3mm)
, to be specified
*Backstand
1~3 ply (plies), to be specified
*Embossing
steel to rubber, pneumatic
*Lamination
Gluing & embossing
point to point/nested,deco lamination(to be
specified)
*Edge-embossing
independent pneumatic, steel to steel, to be
specified
Description
DESCRIPTION
The whole machine adopts the advanced PLC computer programming system,
speed adjust by inverter, electronic braking, HMI operation panel .
And it is no doubt for this machine to obtain the state patent with
all the excellent and practical configurations installed on this machine.
Main features:
1. Unwind stand: jumbo reel is pneumatic unwinding , with manually paper
tension adjusting unit and lateral adjusting unit for each jumbo reel.
2. Pneumatic loading of jumbo reel can greatly reduce the working tension.
3. Paper detector function can cut down the paper wastage.
4. Warning unit for re-feeding the cores.
5. Lamination unit:
A- when producing kitchen towel, to apply the glue to the bulgy area of
the embossed paper web.
B- When producing Deco toilet roll, to apply the colorful glue to the 2 plies or
3 plies paper , to show the toilet roll in different pattern with color(the pattern is subject to the embosser design), to stick the different plies of
paper together while will not destroy the softness of the paper.
