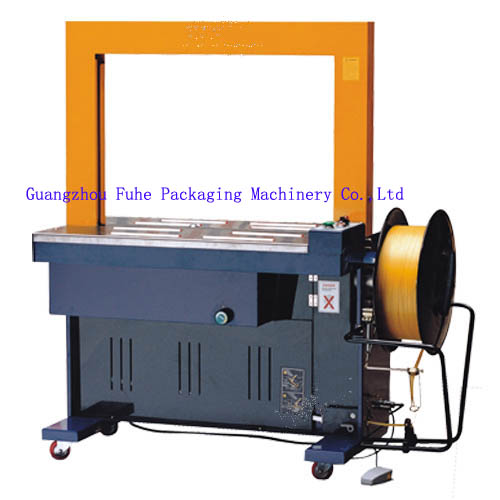

KZG-8060 Automatic Strapping Machine
KZG-8060 Automatic Strapping Machine

KZG-8060 Automatic Strapping Machine

PRODUCT DETAILS

Automatic strapping machine is widely use in all kinds of fast strapping in all walks of life. It not only can work alone but also more work in one production line. The main part adopts strong ,reliable ,efficient KZ stricture ,maintaining without add oil, strong strapping , high speed ,and long service life.
Special design for conveyor track ,widening straps range , as the result that cost down. The equipment adopts human-computer interface and control by excellent PLC. Full-digital manipulate , simple way to adjust parameters , the system running stable .
KZG series with rattler ,save more labour for strapping .


Description

TECHNICAL PARAMETER

Model       KZG-8060
Voltage                        AC 220V/50Hz
Power                         850W
Max Strapping Size 800×600mm(Standard type)
Max Strapping Size                   80×50mm
Strapping Speed                      2.15sec/turn
Strapping Force       25-700N(Adjustable)
Available Strapping Belt   width9~15mm , thickness0.5~1.1mm
Height of Table                    830mm
Overall Dimension                     1420×650×1565mm
Net Weight                     248kg
