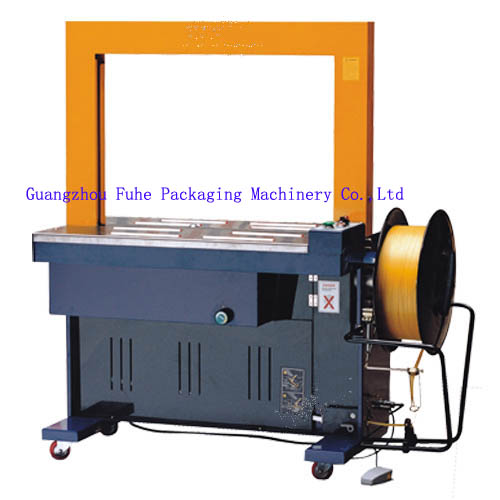

KZA-8060 Automatic Strapping Machine
KZA-8060 Automatic Strapping Machine

KZA-8060 Automatic Strapping Machine

PRODUCT DETAILS

Automatic strapping machine is widely use in all kinds of fast strapping in all walks of life. It not only can work alone but also more work in one production line. The main part adopts strong, reliable, efficient KZ stricture ,maintaining without add oil, strong strapping , high speed ,and long service life.
Special design for conveyor track, widening straps range, as the result that cost down. The equipment adopts human-computer interface and control by excellent PLC. Full-digital manipulate, simple way to adjust parameters , the system running stable .
KZG series with rattler ,save more labour for strapping .

Description

TECHNICAL PARAMETER

Model     KZA-8060
Voltage   AC 220V/50Hz
Power      850W
Max Strapping Size   800×600mm(Standard type)
Min Strapping Size   80×50mm
Strapping Speed 2.15sec/turn
Strapping Force   25-700N(Adjustable)
Available Strapping Belt   width9~15mm, thickness 0.5~1.1mm
Height of Table   830mm
Overall Dimension        1420×650×1565mm
Net Weight 235kg
