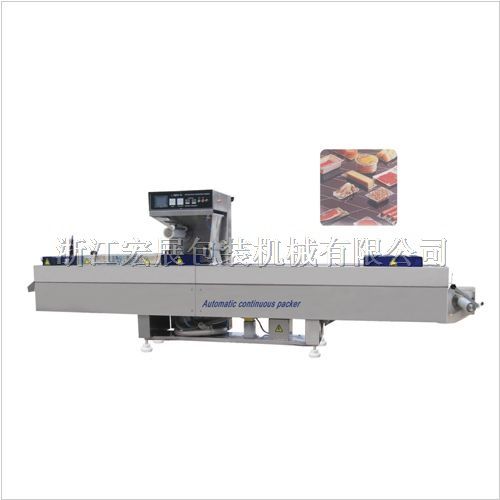

KFV-320 AUTOMATIC VACUUM FORMING AND PACKING MACHINE

PRODUCT DETAILS

Automatic vacuum forming packing machine adopt the famous brand of electric components and F930 human-computer interface touching screen,fix with photo sensor to get the completed Logo in sealing film,fix with waste film recycle system,and fix with power warning and protection system.This machine is made of aluminum-magnesium alloy with thickness 20mm.The gas filling system and date coding system are optional.

Description

TECHNICAL PARAMETER

Model	KFV-320
Bottom film width	320mm
Upper film width	305mm
Forming depth	Max 100mm
Vacuum pump	Germany BUSH pump 100m³(160m³/250m³/300m³ for optional)
Controller	10.1"touch screen,PLC
Drive motors	Servo motor
For print film	Optional All electric and pneumatic
