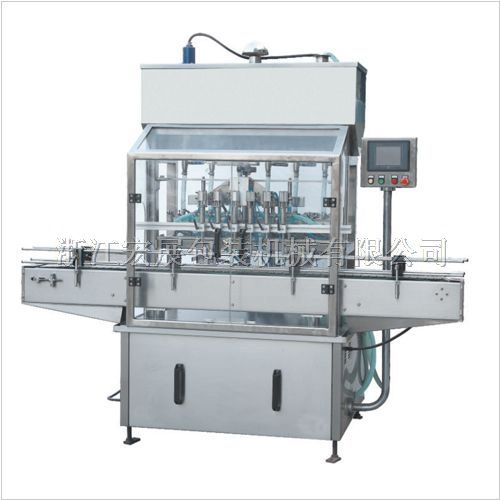

HP-6N FULL-AUTOMATIC PISTON-TYPE FILLING MACHINE
HP-6N FULL-AUTOMATIC PISTON-TYPE FILLING MACHINE

HP-6N FULL-AUTOMATIC PISTON-TYPE FILLING MACHINE

PRODUCT DETAILS

1. This machine has six filling head, driven by a six cylinder, filling the material more quickly and accurately
2. using German FESTO, Taiwan Air Tac pneumatic components and electronic control  parts of Taiwan, stable performance
3. material contact parts are made with 316L stainless steel
4. with Korea Photonics eye device, Taiwan PLC, touch screen, inverters and electrical  components in France
5. adjustment facilities, no bottle no filling, precise filling volume, and with counting  function
6. with anti-drip filling and drawing the bulkhead, anti-foam products, filling high-lift system to ensure that the bottle top positioning system and liquid control systems.

Description

TECHNICAL PARAMETER

Model HP-6N
Speed 60-100Bottles/min
Filling Accuracy ≤±1%
Voltage 220/110V,50/60Hz
Air Pressure 0.4-0.6MPa
Current 3A
Power 500W
Model 5-60ml 10-125ml 25-250ml 50-500ml 100-1000ml
