Fully automatic Pocket tissue Packing Machine
Fully automatic Pocket tissue Packing Machine

Fully automatic Pocket tissue Packing Machine

PARAMETERS

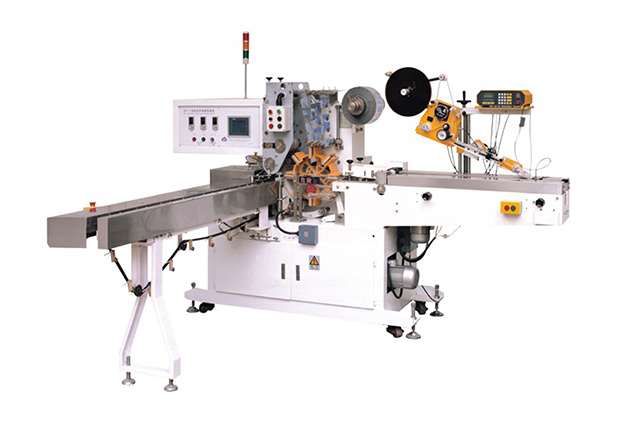

BS-FA-NP  Automatic Pocket Tissue Packing Machine

Machine size(mm)

2840L×2650W×1720H

Air pressure(Mpa)

0.5-0.6

Production size(mm)

A:(70-110)L×(50-55)W×(20-28)H

Voltage(can be ordered)

380V;50Hz

Speed(bags/min)

70-110

Machine weight(kg)

1500

Power(kw)

4.68

Packing material

CPP, PE and so on

Description

MAIN FEATURES

high speed,safty,reduce manual,reduce defective,full automatic,high quality


1,  Adopts advance control of SIEMENS’ PLC programming and touch screen to set up.

2,  Adopts trouble tracing and alarm system, the trouble can be found and solved easier.

3,  The driving system adopts advance variable frequency speed regulating control and drive

with stepping motor, has the features of accurate control and locating compact matched movement.

4,  With the automatic oil-filling circular lubricating system, the use life of the machine parts have been extended greatly.

5,  With adopting static electricity removing device, the packing effect is more perfectible.

6,  With the intelligent tem-controller, the temperature adjustment is flexible.

7,  Can be equipped with auto-perforating device, which is for various tear-off outside.

8,  Automatically print production date and the location can be adjusted from up to down, from left to righ
