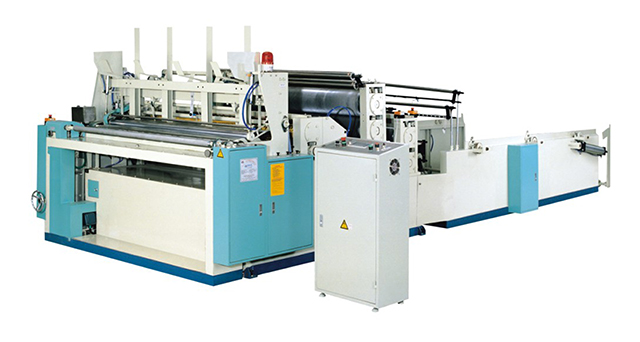

Fully Automatic Toilet Tissue Machine

parameters

Machine name	BS-FA-1 Fully Automatic Rewinder
Model	1092/1575/1760/2200/2500/2900
Max width of raw paper	1350/1750/2000/2150/2400/2800 mm, other sizes to be specified
Max outer diameter of raw paper	1100mm, other sizes to be specified
Inner diameter of raw paper core	3",76 mm, other sizes to be specified
Outer diameter of finished product	90-135mm, other sizes to be specified
Product diameter control	electric/pneumatic
Speed	0~200m/min
Operation speed	180m/min
Power	5.5~22kw variable frequency speed regulating
Parameter setting	HMI(can be equiped with touch screen operation panel)
Procedure control	PLC
Brake	electric&pneumatic control
Pneumatic system	3HP air compressor, which the min pressure is 5kg/cm2pa(supplied by user)
Perforating blade	4 pcs spiral blades
Perforating Size	108mm(+-2mm)
Dimension and weight	depends on model and configuration
*Options
*Adjustable perforating Size	4 blades: 90-140mm 2 blades: 200-350mm 1 blade: 200-500mm (+-3mm) , to be specified
*Backstand	1~3 ply (plies), to be specified
*Embossing	single embossing, double embossing, steel to steel (point to point/convex to plane), steel to felted , steel to paper woolen , steel to rubber , pneumatic, to be specified
*Edge-embossing	independent pneumatic, steel to steel, to be specified

Description

Main features:

1.during the winding, the paper log can

rewind tightly first,then loosely, to achieve different density on one paper log.

Thus the paper log will not separate from the core after long time storing.

2. Automatic paper core feeding and finished roll discharging can be affected automatically.

Cores betweenφ25-50 mm can be easily changed within 1 minute on the core holder.

high speed winding at 180-200m/min.

one log can be finished rewinding and unloading within 8-12 second

( a log of sheet size 110mm, 200 sheets can be finished within 14 seconds)

3. Automatic tail-cutting, gluing and sealing.

the synchronized finished of automatic Tail-Trimming, gluing tail-sealing can reduce consumption of

paper are sent to the process of slitting and packing.
