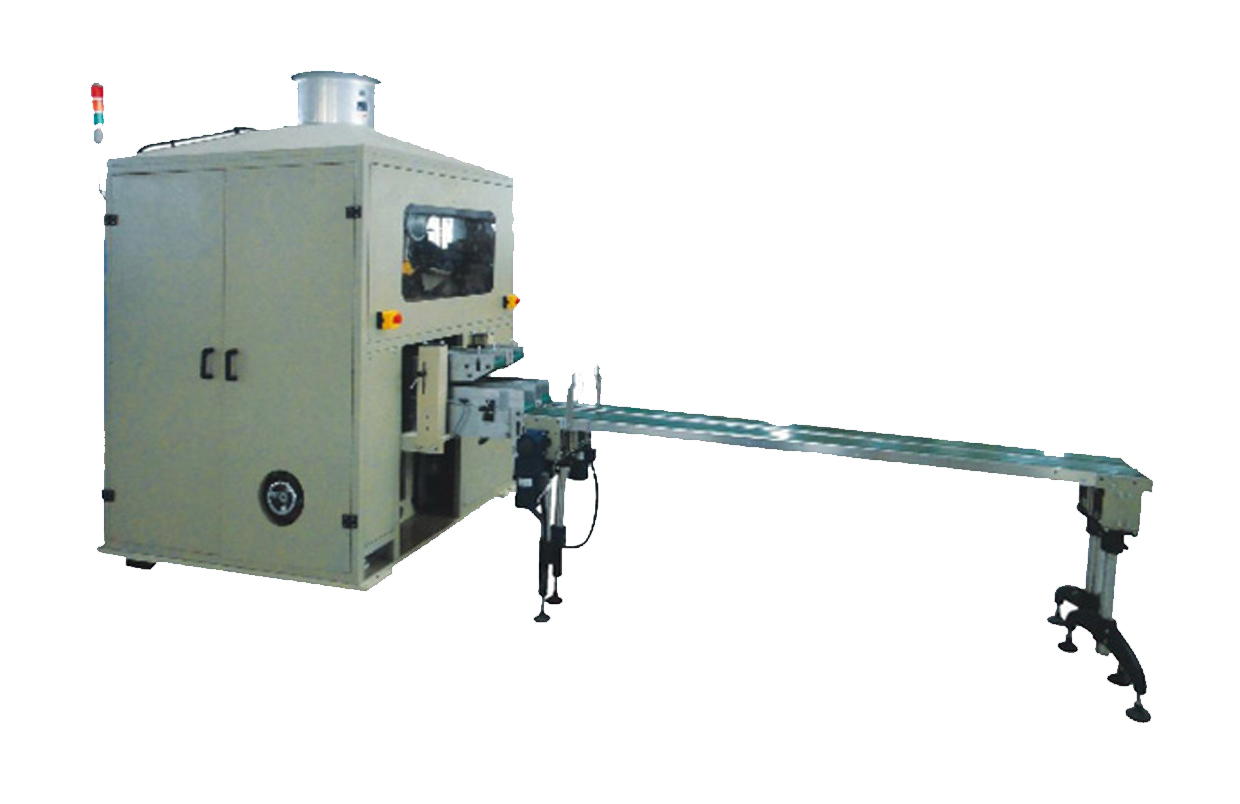

Fully Automatic Tissue Log Saw Machine

PARAMETERS

paper cutting specifications,LWH	L=90-250,W=60-150,H=60-150
max feed length	1800mm
transmission method	uses servo motar system to drive the conveyor belt for positioned transmission
paper cutting method	rotary swing round cutter with continuous controlled paper feeding
pdesign speed	120 cuts per minute,two lanes can be cutted each time(length=100mm)
production speed	100cuts per minute,two lanes be cutted each time(length=100mm)
knife sharpening	pnuematic knife sharpening the sharpening parameter can be controlled on the panel
sharpening feed	manual fed sharpening
cutter holder height compensation	manual fed sharpening
cooling system	compressed air is used to blow the knife sharpening place for cooling
cutting length adjustment	controlled on the panel ,tolerance:1mm
vertical cutting tolerance	1mm
power	12.5kw
minimum air pressure requirement	6mpa
air consumption	500L/shift
drive	independent motor drive,servo motor,timing belt,chip-base band
protection	all major transmission parts are protected with protection shields
