PRODUCT DETAILS
FRM-1000 series ink printing continuous sealers, is suitable for any can heat sealing material. Speed adjustable steplessly, constant temperature control, temperature adjustable, adapted to the widely range. The sealing machine in using the solid ink printing labels, clear, colour selectable, instant printing and strong adhesion, appoint with suitable R or T arrangement of dual-use printed wheel, can print R type 2 4 bytes (PT18) or three lines PT10.5 words (5). According to the need to also can configure counting device.

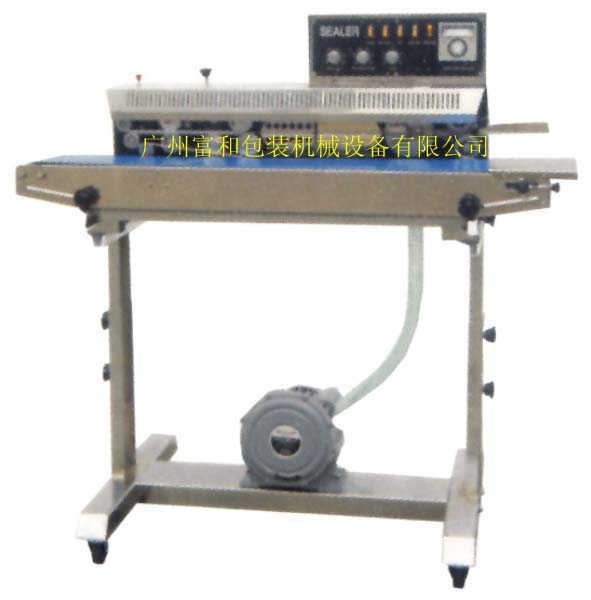

FRM - 1000 series has a variety of type selection, for FRM - 1000 horizontal type and FRM - 1000 Ⅱvertical type, FRM - 1000 Ⅲ for console type . FRMQ - 1000 Ⅲ with inflatable function.
TECHNICAL PARAMETER
Model | FRMQ-1000Ⅲ |
Voltage | AC 220V/50Hz 110V/60Hz |
Motor Power | 235W |
Sealing Power | 300x2W |
Speed | 40x2m/min |
Sealing Width | 8-10mm |
Temperature Range | 0-300℃ |
Printing Type | 固体墨轮Solid ink rollerDistance |
From Sealing Centreto the Conveyor | 10-40mm |
Conveyor Size | 930x180mm |
Max. Conveyor Loading for Single Bag | ≤1kg |
Overall Conveyor Loading | ≤3kg |
Overall Dimension | 1050x560x900mm |
Net Weight | 62Kg |
