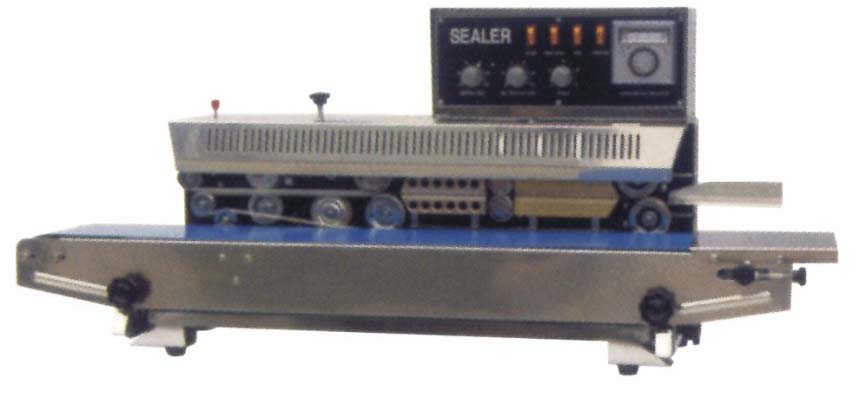

FRM-1000︱SOLID INK PRINTING CONTINUOUS SEALER
FRM-1000︱SOLID INK PRINTING CONTINUOUS SEALER

FRM-1000︱SOLID INK PRINTING CONTINUOUS SEALER

PRODUCT DETAILS

FRM-1000 series ink printing continuous sealers, is suitable for any can heat sealing material. Speed adjustable steplessly, constant temperature control, temperature adjustable, adapted to the widely range. The sealing machine in using the solid ink printing labels, clear, colour selectable, instant printing and strong adhesion, appoint with suitable R or T arrangement of dual-use printed wheel, can print R type 2 4 bytes (PT18) or three lines PT10.5 words (5). According to the need to also can configure counting device.

FRM - 1000 series has a variety of type selection, for  FRM - 1000 horizontal type and FRM - 1000 vertical type, FRM - 1000  for console type . FRMQ - 1000  with inflatable function.

Description

TECHNICAL PARAMETER

Model   FR-1000I
Voltage       AC   220V/50Hz   110V/60HZ
Motor power 50W
Sealing power   300×2W
Speed     40x2m/min
Sealing Width   8mm  - 10mm
Temperature Range   0-300
Printing Type Solid ink roller
Distance from sealing Center to the Conveyor 10-40mm
Conveyor Size 930×180mm
Max. conveyor Loading for Single Bag   ≤1kg
Overall conveyor Loading ≤3kg
Overall Dimension   950×400×430mm
Net weight     45kg
