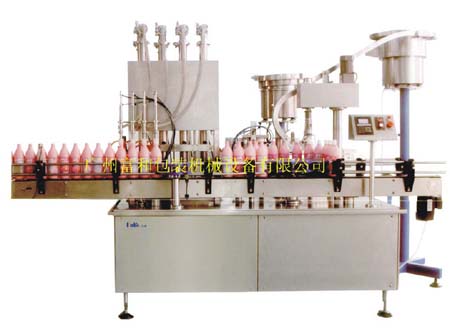

FHGF-4G Series Piston Type Filling-Sealing Machine
FHGF-4G Series Piston Type Filling-Sealing Machine

FHGF-4G Series Piston Type Filling-Sealing Machine

PRODUCT DETAILS

FHGF-4G series piston type, filling and sealing all-in-one machine , the structure is compact and high degree of automation , so it can have mass assembly line work in a small space .  The filling system all adopts import pneumatic element FEST0 , which the machine has powerful motive power and high reliability in filling different high viscosity liquid products. In the machine all the contact surface and corner piece with liquid , the roughness reach 0.5um , correspond GMP standard .



Description

TECHNICAL PARAMETER

Capacity 0-40Bottle/min
Accuracy ±2ml
Sealing rate 99%
Pressure air consumption 0.3m3/min
Power 1Kw
Filling Range 50ml 125ml 250ml  500m
Barometric 0.6Mpa
voltage 220/380V
Net Weight 800kg
