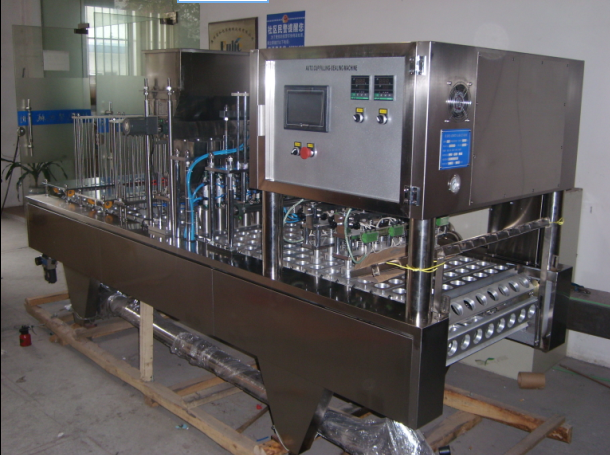

BS60A-8 Full Automatic Plastic Cup(Bottle) Filling Sealing Machine
BS60A-8 Full Automatic Plastic Cup(Bottle) Filling Sealing Machine

BS60A-8 Full Automatic Plastic Cup(Bottle) Filling Sealing Machine

PRODUCT FEATURES

Automatically finish the processes of falling cups, filling, sealing, date printing, cutting the edge, photoelectric control device and UV sterilization.

It is mainly used in the industries like: soy milk,milk,fruit juice,mineral water,jelly and so on.

The machine use Japan Omron programmable logic controller,CIP automatic Cleaning Barrel,Taiwan pneumatic control components,Intelligent Digital Display Temperature Control System,Sealing with high strength, good sealing, and low failure rate.

In addition, it can be customized that according to your special requirements

Description

TECHNICAL PARAMETER

Model BS60A -8
Power 220V3.5KW
Capacity 7200 cups/h
Filling Range 50-250ml
Temperature 0-300
Seal Material PE PP PE/PET
Air Source 0.4m3/min  8bar
Weight 500Kg
Overall Dimension 3000×820×1550mm
