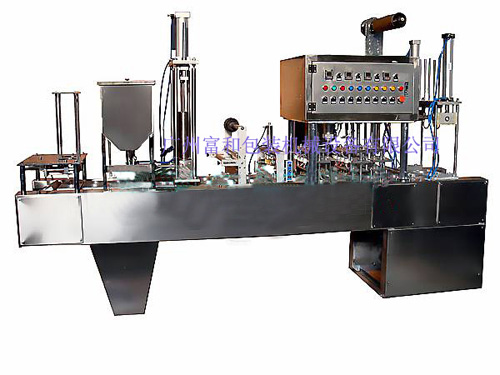

BS60A-6 Full Automatic Plastic Cup (Box) Filling Sealing Machine
BS60A-6 Full Automatic Plastic Cup (Box) Filling Sealing Machine

BS60A-6 Full Automatic Plastic Cup (Box) Filling Sealing Machine

PRODUCT FEATURES

  • Automatically finish the processes of falling cups, filling, sealing, date printing, cutting the edge, photoelectric control device and UV sterilization.
  • It is mainly used in the industries like: bean curd,milk,fruit juice,mineral water,jelly and so on.
  • The machine use Japan Omron programmable logic controller,CIP automatic Cleaning Barrel,Taiwan pneumatic control components,Intelligent Digital Display Temperature Control System,Sealing with high strength, good sealing, and low failure rate.
  • In addition, it can be customized that according to your special requirements

Description

TECHNICAL PARAMETER

Model BS60A -6
Power 220V3.5KW
Capacity 3600 cups/h
Filling Range 50-250ml
Temperature 0-300
Seal Material PE PP PE/PET
Air Source 0.4m3/min  8bar
Weight 500Kg
Overall Dimension 3000×820×1550mm
