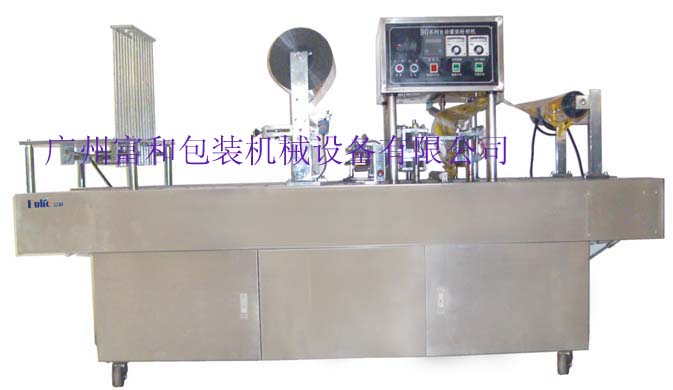

BS32A-4 Full Automatic Cup Filling Sealing Machine
BS32A-4 Full Automatic Cup Filling Sealing Machine

BS32A-4 Full Automatic Cup Filling Sealing Machine

PRODUCT FEATURES

  • This series is made of stainless steel and is designed to meet the need to fill drinks into plastic bottles and cups .
  • Automatically finish the processes of falling cups, filling, sealing, date printing, cutting the edge, photoelectric tracking and sterilizing with ultraviotet lay.
  • It is mainly used in the industries like: soya-bean milkmilkfruit juicemineral water and so on.

Description

TECHNICAL PARAMETER

Model BS32A-4
Power 220V3.5KW
Capacity 32cups/min
Filling Range 50-250ml
Temperature 0-300℃
Seal Material PE PP PE/PET
Air Consumption 0.4m3/min  8bar
Overall Dimension 2000×700×1550mm
Weight 500Kg
