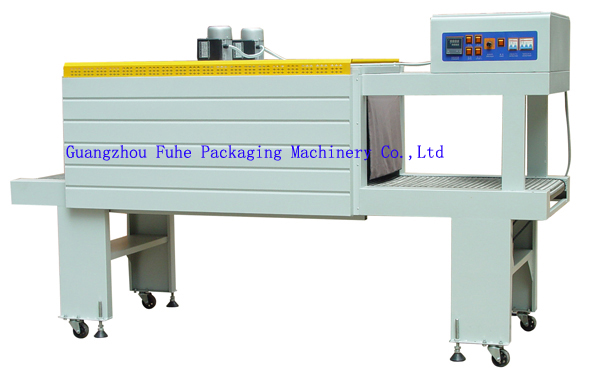

BS 5530 Series Heat Shrink Machine
BS 5530 Series Heat Shrink Machine

BS 5530 Series Heat Shrink Machine

PRODUCT DETAILS

The machine adopts jet-propelled structure. It is applied to a large scale shrink package of software. biscuit. printing. pharmacy and floor. ceramics. drinking. beer etc industry. Temperature is control by capacity and strong power turbine heat-seal electrical machine. Delivery way is XR-SL or drum-type. It is applied to PVC.POF.PP.PE etc heat shrink film, especially suits PE heat shrink film.

Description

TECHNICAL PARAMETER

Model BS5530L BS5540L BS5530M BS5540M
Voltage 380V/50HZ(3PH) 380V/50HZ(3PH) 220V/50HZ(3PH)
Power 24Kw 27Kw 18Kw 21Kw
Conveyor Loading 80kg 40kg
Conveying Speed 0~10m/min 0~8m/min
Tunnel Size 1950×550×300mm 950×550×400mm 1450×550×300mm 1450×550×400mm
Overall Dimension   3100×850×1400mm 3100×850×1500mm 2550×850×1400mm 2550×850×1500mm
Net Weight 350kg 400kg 60kg 300kg
