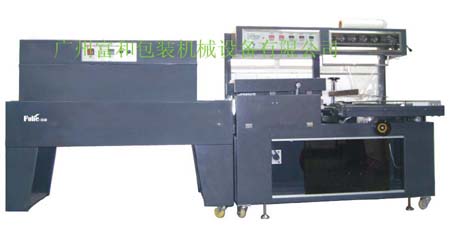

BS-400LA+BMD-450C Automatic Heat Shrink Packing Machine
BS-400LA+BMD-450C Automatic Heat Shrink Packing Machine

BS-400LA+BMD-450C Automatic Heat Shrink Packing Machine

PRODUCT DETAILS

Application scope: pharmacy, food, stationery, cosmetic, electronics products, toy, etc

  • Full closed type packaging.
  • Automatic delivering film, bag-making, sealing and cutting, admission waste, leveling, shrinking, wrapping end products, finishing in one time.
  • Constant temperature style special grade aluminum alloy sealing and cutting knife, resist sticky, seal line is thin, not coking, not smoking, not pollution,
  • The cutter will automatically rebound after cut packing material.
  • The size of packing material can be adjusted at will. do without change pattern
  • All conveyer belts are covered by Teflon insulation pipe, not hot, not damage film,
  • Shrinking room adopts double circulation hot wind system, temperature can be adjusted at will.
  • Deliver motor adopts infinitely variable speed motor, long service life, low noise.


Description

TECHNICAL PARAMETER

Model BMD-450C BS-400LA
Voltage 380V 50HZ 220V 50HZ
Power 7Kw 1.35Kw
Max Speed 10m/min 15-30Bags/min
Max Packing Dimension 450×320mm 560×400×125mm
Overall Dimension 1600×650×1260mm 1450×730×1360mm
Barometric Pressure / 0.5Mpa
Weight 160kg 300kg
Main Material Carbon steel
