Automatic Carbonated Drink Filling, Sealing Machine
PRODUCT DETAILS

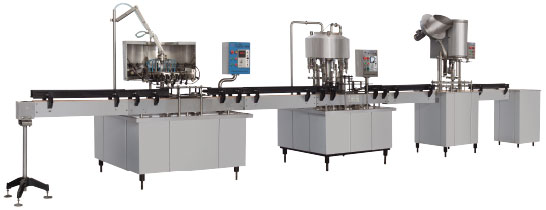

Our production line of washing , filling , sealing and conveying system is the best constitute for PET bottle filling pure water , mineral water , fruit juice , tea drink , wine and so on . The production capacity is (take 500ml as sample) 2000b/h , 4000b/h , 6000b/h , 8000b/h
Description
TECHNICAL PARAMETER OF WASHING MACHINE
| Model | ZCP-12 | ZCP-18 | ZCP-24 |
| Production Capacity | 1500-3000Pb/h | 3000-5000Pb/h | 5000-7000Pb/h |
| Bottle/can type | Glass bottle、Polyester bottle、PVC bottle | ||
| Power | 0.75Kw | 1.1Kw | 1.5Kw |
| Overall Dimension | 1200×1380×1680mm | 1400×1450×1680mm | 1700×1700×1680mm |
| Weight | 800kg | 1100kg | 1600kg |
TECHNICAL PARAMETER OF FILLING MACHINE
| Model | DG-12 | DG-18 | DG-24 |
| Production Capacity | 1000-2000Pcs/h | 2000-3000Pcs/h | 2500-5600Pcs/h |
| Bottle/can Type | Glass bottler、PVC bottler、Pop-top can | ||
| Filling Pressure | 0.2-0.3Mpa | ||
| Filling temperature | 2-6℃ | ||
| Power | 0.75Kw | 1.1Kw | 1.5Kw |
| Overall Dimension | 1060×1200×2000mm | 1300×1150×1980mm | 1520×1300×1820mm |
| Weight | 1000kg | 1600kg | 2100kg |
