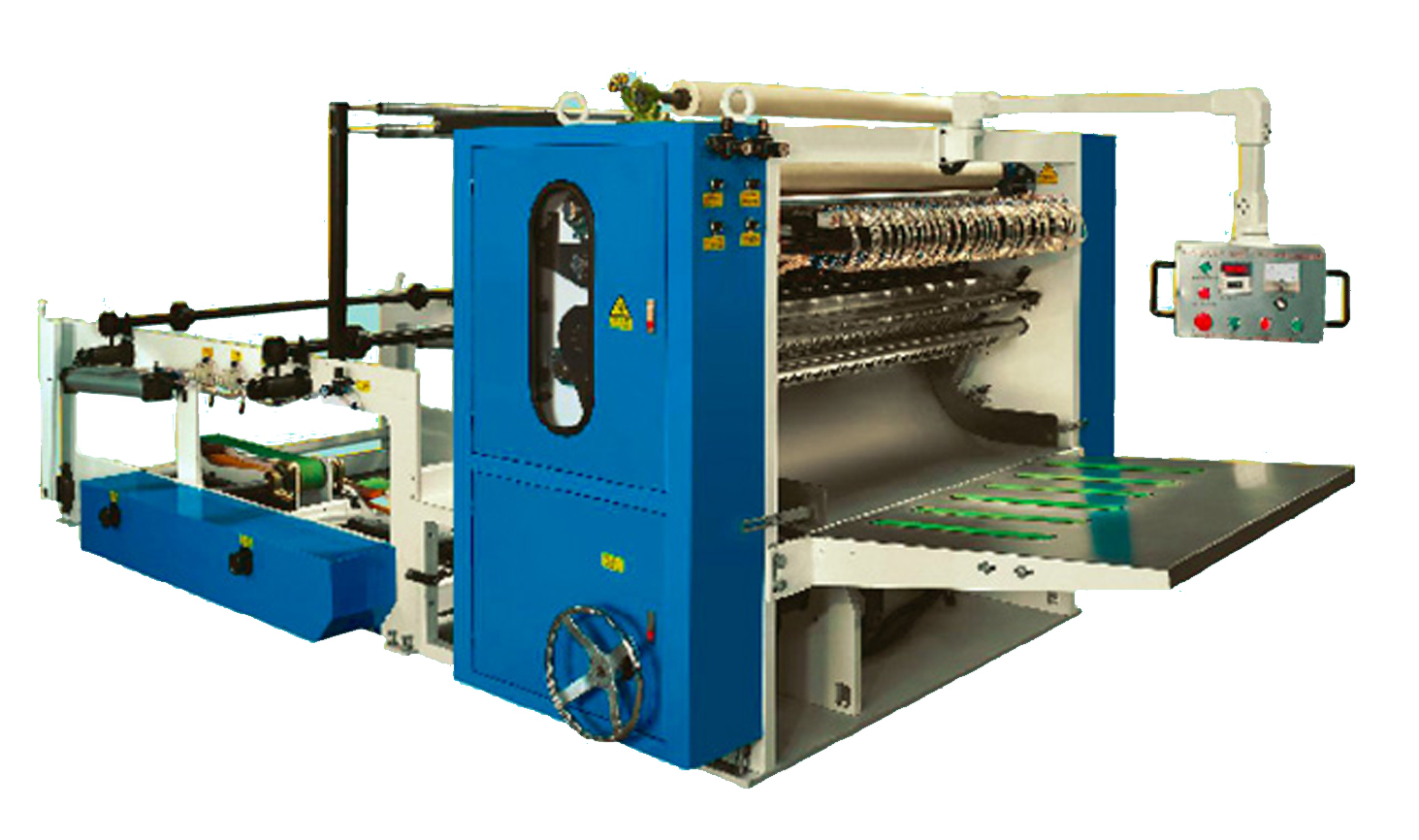

6Lane Facial Tissue Machine

PARAMETERS

Unfolded finished product Y（mm）	210/200/210（other sizes to be specified）
2 ply of jumbo roll (gsm)	Single ply 13~18gram（other to be specified）
Maximum jumbo roll diameter（mm）	Φ1500×900/1050/1260/1500（other size to be specified）
Core size of jumbo roll	Φ76mm(other size to be specified)
Machine speed	110m/min
Main power（KW）	5.5-11.5(Depend on the machine model)
Vacuum power（KW）	15-30KW(Depend on the machine model)
Control voltage（V）	24
Cut off	With the upper blades stay still
Machine framework	The metal plate and welding structure
Paper detection	Web.break detectors throughout all the unit on the line and auto-stop
Machine drive	Motor drive,reducer(with chain),timing belt,flat belt,chain,triangle belt
Jumbo roll loading system	Pneumatic loading system
Unwind stand	2ply
Distance of folding rolls	Adjustable
Paper counter discharge system	Pneumatic paper discharge board
Paper discharge system	Stepless speed control flat board
Dimension（mm）	Depend on the machine model
Weight （kg）	Depend on the machine model

Description

MAIN FEATURES

1. This machine line adopt the PLC control system, HMI, one button Chinese -English language switch,

independent frequency conversion synchronous drive,and mechanic and photoelectric integration, and

so on some advanced technology. Machine equipped with whole line self-detection system, it can observe

itself during the productivity, keeping the machine line in optimal situation.

2. The folding roll and cut off roll are process with Computerized Numerical Control (CNC), also every roll

adjust by the balance test to make sure the rolls can perform at high speed operation.

3. The edge embossing roll surface is cover by some special material and to be chromed.

4. Each back stand has two 160mm width unwinding blet, make sure the jumbo roll cann easily unwinded.

5. The machine would not slip when the machine stop urgently.
